Key Features
Remote Control
Manage LED states — Solid or Fade — directly from your browser over WiFi.
NTP Time Sync
Automatic network time synchronization for accurate scheduling and logging.
Event Logging
Tracks recent system events with precise timestamps for diagnostics.
Watchdog Timer
Built-in Task Watchdog (TWDT) ensures system stability and recovery.
Auto-Redirect
Seamless navigation flow — returns to home after every command action.
Hardware & Pinout

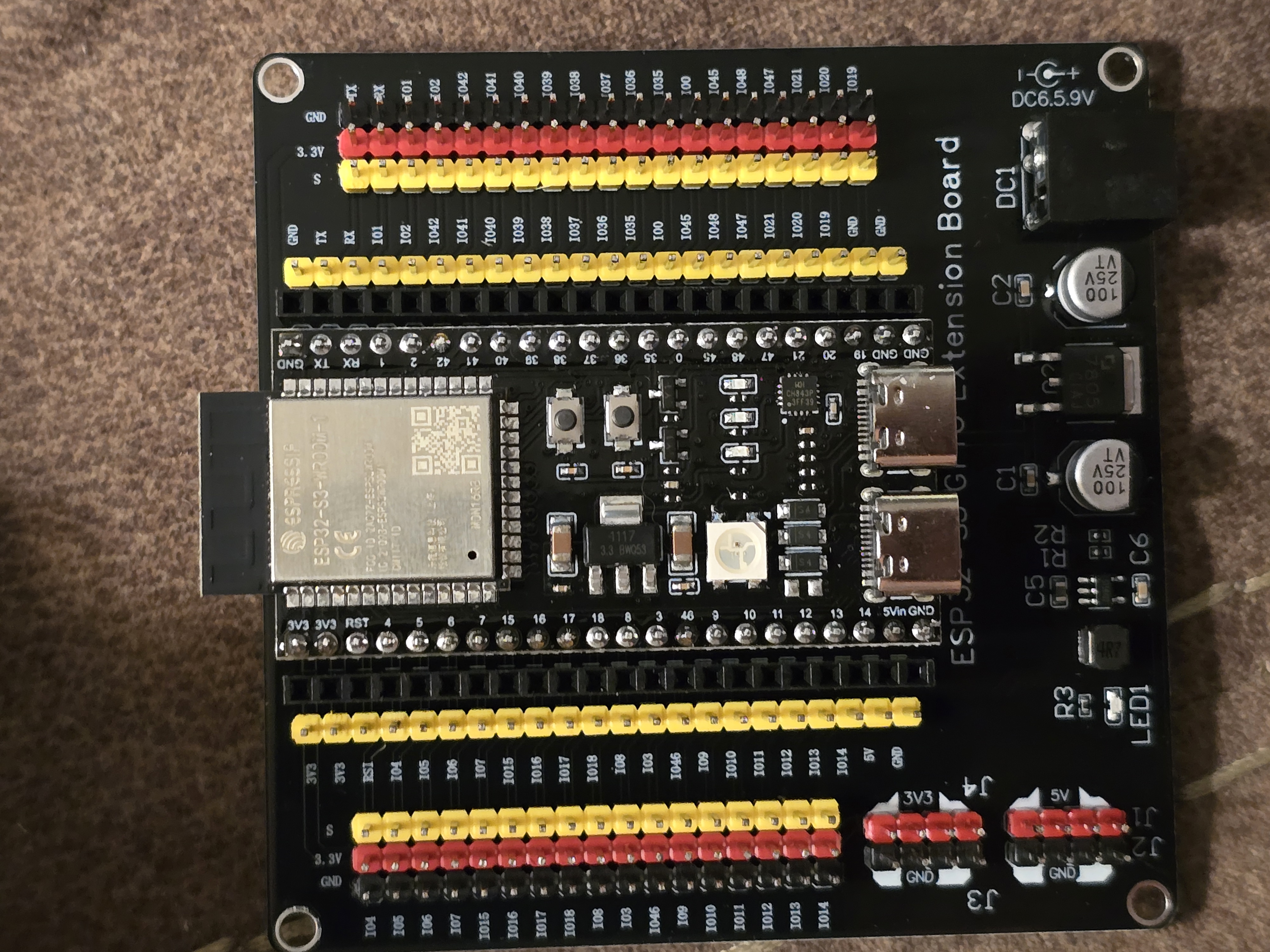

ESP32S3 GPIO Extension Board

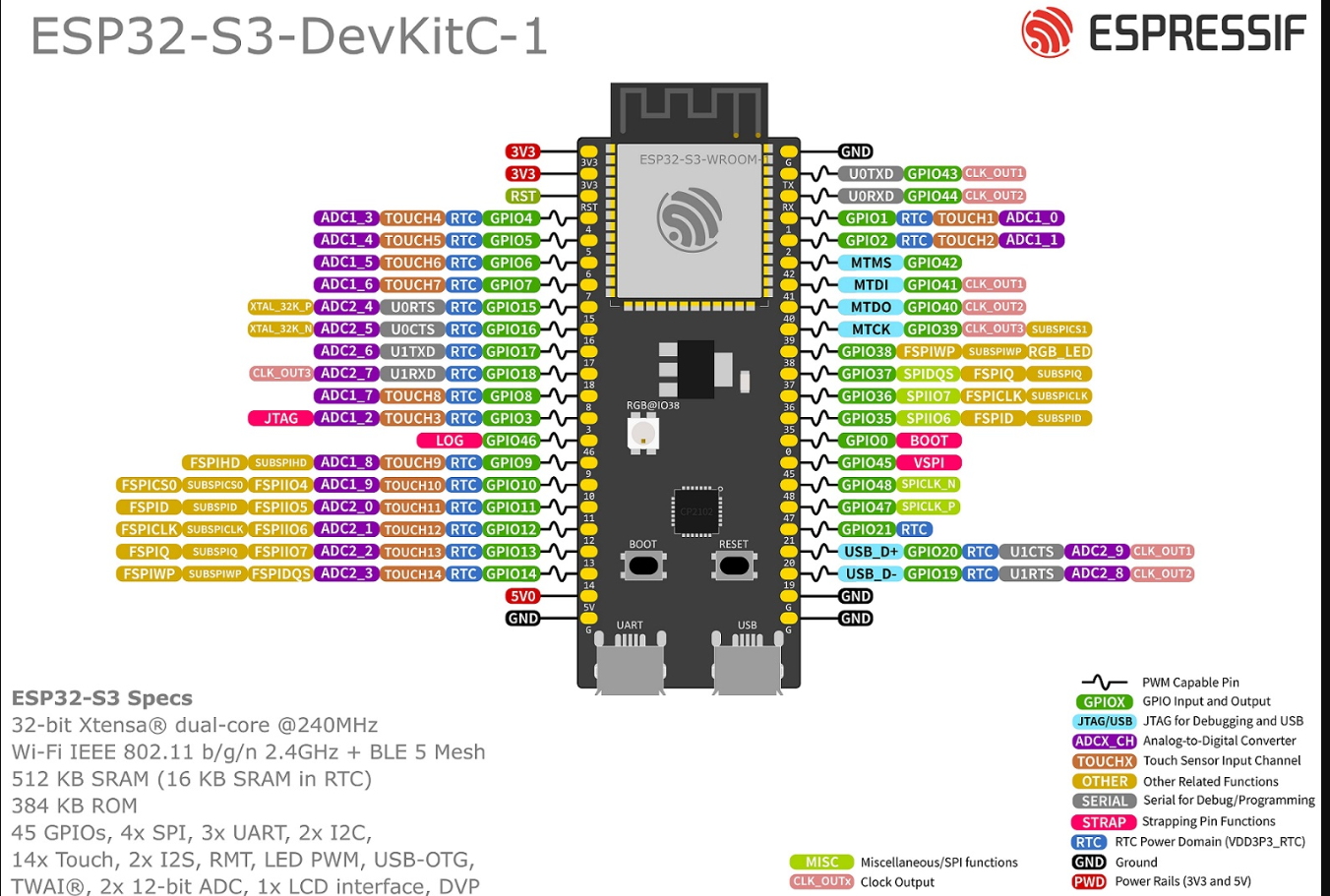

Official ESP32-S3 Pinout Diagram
Required Hardware
ESP32S3 Dev Board
Dual-core Xtensa LX7, plenty of GPIO and WiFi/BLE onboard.
WS2812 RGB Strip
Individually addressable LEDs, daisy-chainable, 5V logic.
Power Supply
Rated for your LED strip length — 5V with sufficient current.
Getting Started
-
1
Clone the repository and navigate to the project directory.
-
2
Activate the ESP-IDF environment:
. ./export.sh -
3
Configure WiFi credentials in
main/hello_world_main.c. -
4
Build the project:
idf.py build -
5
Flash to the device:
idf.py -p /dev/ttyACM0 flash
Build Commands
idf.py build
idf.py -p /dev/ttyACM0 flash
